ISGB型便拆式离心泵

ISGB型便拆式管道离心泵性能范围

流量范围:5.3~1200(m3/h)

扬程范围:2~125m

进出口口径:40~350(mm)

介质温度:-20℃~120℃

工作压力:≦1.6Mpa

泵体、端盖、叶轮:铸铁,不锈钢

泵轴:45钢,不锈钢

机械密封:石墨,碳化钨,碳化硅,不锈钢,四氟

产品概述
ISGB、IRGB型便拆式管道式离心泵是在IS型泵,ISG型立式泵的基础上,一方面结合国外先进技术,另一个方面根据本公司多年的生产经验和广大用户的宝贵经验,综合开发工程的一种结构新颖,技术领先其他同类产品的便拆式立式离心泵。该系列产品经国家泵类产品严格按国际标准ISO2858进行设计制造
便拆式离心泵是在整体结构上进行大胆突破设计。采用独立轴承体、泵轴支撑,解决了原ISG及ISW泵加长轴靠电机轴承支撑的不足之处;采用优秀水力模型的叶轮,消除了原立式泵轴向力大的不足之处;电机采用Y系列标准通用电机,解决原立式泵加长轴电机配套更换难的问题;同时100%的便拆结构,解决了更换大功率水泵的轴承、机械密封、叶轮、泵轴的难题。
该泵与国内同类产品相比,具有运转更平稳、使用寿命长配套更方便、维护保养更轻松等等,无可代替的优点。在立式泵系列产品中属国内前列,各项技术居国内领先,是替代ISG型立式泵、IS型离心泵、S型双吸泵等常规各种离心泵的理想产品。
产品特点
结构紧凑,适用于现代建筑。
泵体:管道连接型式的螺旋型泵壳,采用现代优秀的水力模型设计制造,进出口在同一直线上,且口径相同。符合GB4216.5,并带有Rp1/4或Pp3/8测压口。
叶轮:闭式铸铁叶轮,优秀的水力模型保证泵的效率和可靠性。
机械密封:用于水温80℃、120℃以下免保养,不受转向限制。动环的特殊设计保证密封可靠性

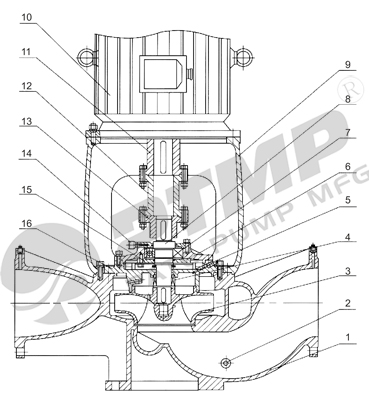

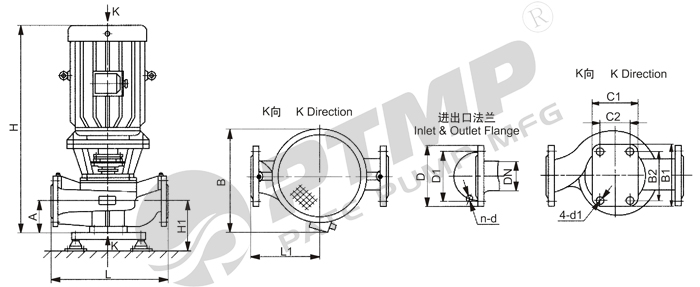

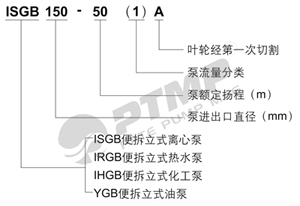

型号意义
例:ISGB150-50(1)
ISGB-(ISGB便拆式离心泵,IRG便拆立式热水泵,IHGB便拆立式化工泵,YGB便拆立式油泵)
150-泵进出口直径(mm)
50-水泵额定扬程(m)
1-泵流量分类


泵型号

流量(m3/h)

流量(L/s)

扬程(m)

效率(%)

转速(r/min)

功率(kw)

汽蚀余量(m)

重量(kg)

1

ISGB40-12.5

6.3

1.75

12.5

54

2900

0.55

2.3

35

2

ISGB40-12.5A

5.6

1.56

10

52

2900

0.37

2.3

35

3

ISGB40-20

6.3

1.75

20

46

2900

1.1

2.3

35

4

ISGB40-20A

5.6

1.56

16

45

2900

0.75

2.3

33

5

ISGB40-32

6.3

1.75

32

40

2900

2.2

2.3

50

6

ISGB40-32A

5.9

1.64

28

39

2900

1.5

2.3

45

7

ISGB40-32B

5.5

1.53

24

38

2900

1.1

2.3

40

8

ISGB40-50

6.3

1.75

50

33

2900

4.0

2.3

75

9

ISGB40-50A

5.9

1.64

44

31

2900

3.0

2.3

65

10

ISGB40-50B

5.3

1.47

36

29

2900

2.2

2.3

55

11

ISGB40-80

6.3

1.75

80

28

2900

7.5

2.3

110

12

ISGB40-80A

5.9

1.64

70

28

2900

5.5

2.3

105

13

ISGB40-80B

5.5

1.53

60

27

2900

5.5

2.3

80

14

ISGB40-12.5(I)

12.5

3.47

12.5

62

2900

1.1

2.3

35

15

ISGB40-12.5(I)A

11

3.05

10

60

2900

0.75

2.3

32

16

ISGB40-20(I)

12.5

3.47

20

58

2900

1.5

2.3

40

17

ISGB40-20(I)A

11

3.05

16

57

2900

1.1

2.3

35

18

ISGB40-32(I)

12.5

3.47

32

52

2900

3.0

2.3

60

19

ISGB40-32(I)A

11.7

3.25

28

51

2900

2.2

2.3

50

20

ISGB40-32(I)B

10.4

2.89

24

50

2900

1.5

2.3

45

21

ISGB40-50(I)

12.5

3.47

50

46

2900

5.5

2.3

90

22

ISGB40-50(I)A

11.7

3.25

44

46

2900

4.0

2.3

80

23

ISGB40-50(I)B

10.6

2.94

36

40

2900

3.0

2.3

70

24

ISGB40-80(I)

12.5

3.47

80

38

2900

11

2.3

150

25

ISGB40-80(I)A

11.6

3.22

70

38

2900

7.5

2.3

100

26

ISGB40-80(I)B

10.8

3.0

60

37

2900

7.5

2.3

95

27

ISGB40-80(I)C

10.1

2.87

52

36

2900

5.5

2.3

90

28

ISGB50-12.5

12.5

3.47

12.5

62

2900

1.1

2.3

40

29

ISGB50-12.5A

11

3.05

10

60

2900

0.75

2.3

35

30

ISGB50-20

12.5

3.47

20

58

2900

1.5

2.3

45

31

ISGB50-20A

11

3.05

16

57

2900

1.1

2.3

40

32

ISGB50-32

12.5

3.47

32

52

2900

3.0

2.3

60

33

ISGB50-32A

11.7

3.25

28

51

2900

2.2

2.3

50

34

ISGB50-32B

10.4

2.89

22

50

2900

1.5

2.3

46

35

ISGB50-50

12.5

3.47

50

46

2900

5.5

2.3

105

36

ISGB50-50A

11.7

3.25

44

45

2900

4.0

2.3

85

37

ISGB50-50B

10.6

2.94

38

44

2900

3.0

2.3

70

38

ISGB50-80

12.5

3.47

80

38

2900

11

2.3

160

39

ISGB50-80A

11.6

3.22

70

38

2900

7.5

2.3

120

40

ISGB50-80B

10.8

3.0

60

37

2900

7.5

2.3

115

41

ISGB50-80C

10

2.78

52

36

2900

5.5

2.3

110

42

ISGB50-12.5(I)

25

6.97

12.5

69

2900

1.5

2.5

45

43

ISGB50-12.5(I)A

22.3

6.19

10

67

2900

1.1

2.5

40

44

ISGB50-20(I)

25

6.94

20

68

2900

3.0

2.5

60

45

ISGB50-20(I)A

22.3

6.19

16

66

2900

2.2

2.5

50

46

ISGB50-32(I)

25

6.94

32

63

2900

4.0

2.5

75

47

ISGB50-32(I)A

23.4

6.5

28

62

2900

4.0

2.5

75

48

ISGB50-32(I)B

21.6

6.0

24

61

2900

3.0

2.5

65

49

ISGB50-50(I)

25

6.94

50

58

2900

7.5

2.5

110

50

ISGB50-50(I)A

23.5

6.53

44

57

2900

7.5

2.5

110

51

ISGB50-50(I)B

21.8

6.06

38

55

2900

5.5

2.5

100

52

ISGB50-80(I)

25

6.94

80

50

2900

15.0

2.5

175

53

ISGB50-80(I)A

23.4

6.5

70

51

2900

11.0

2.5

165

54

ISGB50-80(I)B

21.6

6.0

60

50

2900

11.0

2.5

165

55

ISGB50-125(I)

25

6.94

125

40

2900

30.0

2.5

310

56

ISGB50-125(I)A

23.7

6.58

113

40

2900

22.0

2.5

250

57

ISGB50-125(I)B

22.5

6.25

101

39

2900

18.5

2.5

215

58

ISGB50-125(I)C

20.6

5.72

85

38

2900

15.0

2.5

195

59

ISGB65-12.5

25

6.94

12.5

69

2900

1.5

2.5

45

60

ISGB65-12.5A

22.3

6.19

10

67

2900

1.1

2.5

40

61

ISGB65-20

25

6.94

20

68

2900

3.0

2.5

60

62

ISGB65-20A

22.3

6.19

16

66

2900

2.2

2.5

50

63

ISGB65-32

25

6.94

32

63

2900

4.0

2.5

75

64

ISGB65-32A

23.4

6.5

28

62

2900

4.0

2.5

75

65

ISGB65-32B

21.6

6.0

24

61

2900

3.0

2.5

65

66

ISGB65-50

25

6.94

50

58

2900

7.5

2.5

110

67

ISGB65-50A

23.5

6.53

44

57

2900

7.5

2.5

110

68

ISGB65-50B

21.8

6.06

38

55

2900

5.5

2.5

100

69

ISGB65-80

25

6.94

80

50

2900

15.0

2.5

185

70

ISGB65-80A

23.4

6.5

70

50

2900

11.0

2.5

170

71

ISGB65-80B

21.6

6.0

60

49

2900

11.0

2.5

170

72

ISGB65-125

25

6.94

125

40

2900

30.0

2.5

320

73

ISGB65-125A

23.7

6.58

113

40

2900

22.0

2.5

260

74

ISGB65-125B

22.5

6.25

101

39

2900

18.5

2.5

225

75

ISGB65-125C

20.6

5.72

85

38

2900

15.0

2.5

210

76

ISGB65-12.5(I)

50

13.9

12.5

73

2900

3.0

3.0

65

77

ISGB65-12.5(I)A

44.7

12.4

10

72

2900

2.2

3.0

55

78

ISGB65-20(I)

50

12.9

20

72.5

2900

5.5

3.0

100

79

ISGB65-20(I)A

45

12.5

16

71

2900

4.0

3.0

80

80

ISGB65-32(I)

50

13.9

32

71

2900

7.5

3.0

105

81

ISGB65-32(I)A

46.7

13.0

28

70

2900

7.5

3.0

105

82

ISGB65-32(I)B

43.3

12.0

24

69

2900

5.5

3.0

95

83

ISGB65-50(I)

50

13.9

50

67

2900

15.0

3.0

180

84

ISGB65-50(I)A

47

13.1

44

66

2900

11.0

3.0

165

85

ISGB65-50(I)B

43.5

12.1

38

65

2900

7.5

3.0

115

86

ISGB65-80(I)

50

13.9

80

59

2900

22.0

3.0

235

87

ISGB65-80(I)A

46.7

13.0

70

59

2900

18.5

3.0

205

88

ISGB65-80(I)B

43.3

12.0

60

58

2900

15.0

3.0

180

89

ISGB65-125(I)

50

13.9

125

54

2900

37.0

3.0

350

90

ISGB65-125(I)A

46.5

12.9

113

54

2900

30.0

3.0

335

91

ISGB65-125(I)B

44.5

12.4

101

53

2900

30.0

3.0

335

92

ISGB65-125(I)C

41

11.4

85

51

2900

22.0

3.0

270

93

ISGB80-12.5

50

13.9

12.5

73

2900

3.0

3.0

65

94

ISGB80-12.5A

44.7

12.5

10

72

2900

2.2

3.0

60

95

ISGB80-20

50

13.9

20

72.5

2900

5.5

3.0

100

96

ISGB80-20A

45

12.5

16

71

2900

4.0

3.0

80

97

ISGB80-32

50

13.9

32

71

2900

7.5

3.0

105

98

ISGB80-32A

46.7

13.0

28

70

2900

7.5

3.0

105

99

ISGB80-32B

43.3

12.0

24

69

2900

5.5

3.0

100

100

ISGB80-50

50

13.9

50

67

2900

15.0

3.0

175

101

ISGB80-50A

47

13.1

44

66

2900

11.0

3.0

170

102

ISGB80-50B

43.5

12.1

38

65

2900

7.5

3.0

120

103

ISGB80-80

50

13.9

80

59

2900

22.0

3.0

240

104

ISGB80-80A

46.7

13.0

70

59

2900

18.5

3.0

210

105

ISGB80-80B

43.3

12.0

60

58

2900

15.0

3.0

190

106

ISGB80-125

50

73.9

125

54

2900

37.0

3.0

360

107

ISGB80-125A

46.5

12.9

113

53

2900

30.0

3.0

345

108

ISGB80-125B

44.5

12.4

101

53

2900

30.0

3.0

340

109

ISGB80-125C

41

11.4

85

51

2900

22.0

3.0

275

120

ISGB80-12.5(I)

100

27.8

12.5

76

2900

5.5

4.5

110

121

ISGB80-12.5(I)A

89

24.7

10

74

2900

4.0

4.5

85

122

ISGB80-20(I)

100

27.8

2

76

2900

11.0

4.5

165

123

ISGB80-20(I)A

89

24.7

16

74

2900

7.5

4.5

130

124

ISGB80-32(I)

100

27.8

3

76

2900

15.0

4.5

185

125

ISGB80-32(I)A

93.5

26.0

28

74

2900

11.0

4.5

175

126

ISGB80-32(I)B

86.6

24.1

24

73

2900

11.0

4.5

175

127

ISGB80-50(I)

100

27.8

50

74

2900

22.0

4.0

250

128

ISGB80-50(I)A

93.5

26.4

44

73

2900

18.5

4.0

220

129

ISGB80-50(I)B

87

24.2

38

71

2900

15.0

4.0

200

130

ISGB80-80(I)

100

27.8

80

69

2900

37.0

4.0

330

131

ISGB80-80(I)A

93.5

26.0

70

68

2900

30.0

4.0

315

132

ISGB80-80(I)B

87

24.2

60

66

2900

30.0

4.0

315

133

ISGB80-125(I)

100

27.8

125

66

2900

75.0

4.0

675

134

ISGB80-125(I)A

95

26.4

113

66

2900

55.0

4.0

535

135

ISGB80-125(I)B

90

25

101

65

2900

45.0

4.0

425

136

ISGB80-125(I)C

82

22.8

85

63

2900

37.0

4.0

370

137

ISGB100-12.5

100

27.8

12.5

76

2900

5.5

4.5

115

138

ISGB100-12.5A

89

24.7

10

74

2900

4.0

4.5

90

139

ISGB100-20

100

27.8

20

76

2900

11.0

4.5

170

140

ISGB100-20A

89

24.7

16

74

2900

7.5

4.5

120

141

ISGB100-32

100

27.8

32

76

2900

15.0

4.5

200

142

ISGB100-32A

93.5

26.0

28

74

2900

11.0

4.5

185

143

ISGB100-32B

86.6

24.1

24

72

2900

11.0

4.5

180

144

ISGB100-50

100

27.8

50

74

2900

22.0

4.0

245

145

ISGB100-50A

93.5

26.0

44

73

2900

18.5

4.0

215

146

ISGB100-50B

87

24.2

38

71

2900

15.0

4.0

195

147

ISGB100-80

100

27.8

80

69

2900

37.0

4.0

345

148

ISGB100-80A

93.5

26.0

70

68

2900

20.0

4.0

330

149

ISGB100-80B

87

24.2

60

67

2900

20.0

4.0

330

150

ISGB100-125

100

27.8

125

66

2900

75.0

4.5

685

151

ISGB100-125A

95

26.4

113

66

2900

55.0

4.5

550

152

ISGB100-125B

90

25.0

101

65

2900

45.0

4.5

440

153

ISGB100-125C

82

22.8

85

63

2900

37.0

4.5

385

154

ISGB125-12.5

160

44.4

12.5

82

2900

11.0

4.5

180

155

ISGB125-12.5A

143

39.7

10

77

2900

7.5

4.5

130

156

ISGB125-20

160

44.4

20

80

2900

15.0

4.5

225

157

ISGB125-20A

143

39.7

16

77

2900

11.0

4.5

210

158

ISGB125-32

160

44.4

32

78

2900

22.0

4.5

265

159

ISGB125-32A

150

41.7

28

76

2900

18.5

4.5

230

160

ISGB125-32B

138

38.8

24

73

2900

15.0

4.5

215

161

ISGB125-50

160

44.4

50

79

2900

37.0

5.0

400

162

ISGB125-50A

150

41.7

44

74

2900

30.0

5.0

380

163

ISGB125-50B

138

38.3

37.5

72

2900

22.0

5.0

325

164

ISGB125-80

160

44.4

80

77

2900

55.0

4.5

580

165

ISGB125-80A

150

41.7

70

74

2900

45.0

4.5

495

166

ISGB125-80B

138

38.3

60

73

2900

37.0

4.5

430

167

ISGB125-125

160

44.7

125

72

2900

90.0

4.5

800

168

ISGB125-125A

150

41.7

110

70

2900

75.0

4.5

715

169

ISGB125-125B

143

39.7

100

69

2900

75.0

4.5

710

170

ISGB125-125C

134

37.2

88

68

2900

55.0

4.5

590

171

ISGB125-32(I)

200

55.6

32

76

2900

30.0

4.5

325

172

ISGB125-32(I)A

187

51.9

28

75

2900

22.0

4.5

295

173

ISGB125-50(I)

200

55.6

50

74

2900

45.0

4.5

430

174

ISGB125-50(I)A

187

51.9

44

73

2900

37.0

4.5

420

175

ISGB125-50(I)B

173

48.1

37

72

2900

30.0

4.5

410

176

ISGB12580(I)

200

55.6

80

76

2900

75.0

4.5

685

177

ISGB125-80(I)A

187

51.9

70

75

2900

55.0

4.5

545

178

ISGB125-80(I)B

173

48.1

60

74

2900

45.0

4.5

460

179

ISGB125-125(I)

200

55.6

125

73

2900

110.0

4.5

950

180

ISGB125-125(I)A

187

51.9

110

72

2900

90.0

4.5

785

181

ISGB125-125(I)B

173

48.1

95

70

2900

75.0

4.5

750

182

ISGB150-12.5

160

44.4

12.5

72

1450

11.0

3.5

200

183

ISGB150-12.5A

140

39

10

70

1450

7.5

3.5

180

184

ISGB150-20

160

44.4

20

71

1450

15.0

3.5

250

185

ISGB150-20A

140

39

17

70

1450

11.0

3.5

230

186

ISGB150-20B

120

33.3

14

70

1450

7.5

3.5

200

187

ISGB150-32

160

44.4

32

70

1450

22.0

3.5

280

188

ISGB150-32A

140

39

28

71

1450

18.5

3.5

270

189

ISGB150-32B

120

33.3

24

71

1450

15.0

3.5

250

190

ISGB150-50

160

44.4

50

72

1450

37.0

3.5

515

191

ISGB150-50A

140

39

44

70

1450

30.0

3.5

500

192

ISGB150-50B

120

33.3

38

70

1450

22.0

3.5

480

193

ISGB150-80

160

44.4

80

72

1450

55.0

3.5

900

194

ISGB150-80A

140

39

70

70

1450

45.0

3.5

765

195

ISGB150-80B

120

33.3

60

67

1450

37.0

3.5

660

196

ISGB150-80

200

55.6

80

76

1450

75.0

4.2

710

197

ISGB150-80A

187

51.9

70

75

1450

55.0

4.2

560

198

ISGB150-80B

173

48.1

60

74

1450

45.0

4.2

465

199

ISGB150-125

200

55.6

125

73

1450

110.0

4.5

980

200

ISGB150-125A

187

51.9

110

72

1450

90.0

4.5

805

201

ISGB150-125B

173

48.1

95

70

1450

75.0

4.5

725

202

ISGB150-12.5(I)

200

55.6

12.5

78

1450

15.0

3.0

265

203

ISGB150-12.5(I)B

179

49.7

10

76

1450

11.0

3.0

245

204

ISGB150-20(I)

200

55.6

20

79

1450

18.5

3.0

300

205

ISGB150-20(I)A

184

51.2

17

78

1450

15.0

3.0

265

206

ISGB150-20(I)B

167

46.4

14

76

1450

11.0

3.0

245

207

ISGB150-32(I)

200

55.6

32

78

1450

30.0

3.5

410

208

ISGB150-32(I)A

187

51.9

28

77

1450

22.0

3.5

335

209

ISGB150-32(I)B

173

48.1

24

76

1450

18.5

3.5

310

210

ISGB150-50(I)

200

55.6

50

75

1450

45.0

3.5

500

211

ISGB150-50(I)A

187

51.9

44

74

1450

37.0

3.5

460

212

ISGB150-50(I)B

174

48.3

38

73

1450

30.0

3.5

435

213

ISGB150-50(I)C

160

44.4

32

71

1450

22.0

3.5

370

214

ISGB150-80(I)

200

55.6

80

69

1450

75.0

3.5

1050

215

ISGB150-80(I)A

187

51.9

70.5

68

1450

75.0

3.5

900

216

ISGB150-80(I)B

174

48.3

62

66

1450

55.0

3.5

780

217

ISGB150-80(I)C

160

44.4

54.5

64

1450

45.0

3.5

650

218

ISGB200-12.5

200

55.6

12.5

78

1450

15.0

3.0

270

219

ISGB200-12.5A

179

49.7

10

76

1450

11.0

3.0

245

220

ISGB200-20

200

55.6

20

79

1450

18.5

3.0

310

221

ISGB200-20A

184

51.2

17

78

1450

15.0

3.0

365

222

ISGB200-20B

167

46.4

14

76

1450

11.0

3.0

245

223

ISGB200-32

200

55.6

32

78

1450

30.0

3.5

420

224

ISGB200-32A

187

51.9

27

77

1450

22.0

3.5

350

225

ISGB200-32B

173

48.1

24

76

1450

18.5

3.5

320

226

ISGB200-50

200

55.6

50

75

1450

45.0

3.5

495

227

ISGB200-50A

187

51.9

44

74

1450

37.0

3.5

460

228

ISGB200-50B

174

48.3

38

73

1450

30.0

3.5

445

229

ISGB200-50C

160

44.4

32

71

1450

22.0

3.5

380

230

ISGB200-12.5(I)

400

111.1

12.5

80

1450

22.0

4.0

385

231

ISGB200-12.5(I)A

358

99.4

10

78

1450

18.5

4.0

470

232

ISGB200-20(I)

400

111.1

20

80

1450

30.0

4.0

480

233

ISGB200-20(I)A

358

99.4

17

78

1450

22.0

4.0

430

234

ISGB200-20(I)B

322

89.4

14

75

1450

18.5

4.0

390

235

ISGB200-32(I)

400

111.1

32

80

1450

55.0

4.0

680

236

ISGB200-32(I)A

374

103.0

28

79

1450

45.0

4.0

560

237

ISGB200-32(I)B

346

96.1

24

78

1450

37.0

4.0

535

238

ISGB200-50(I)

400

111.1

50

81

1450

75.0

4.0

835

239

ISGB200-50(I)A

352

103.9

44

80

1450

75.0

4.0

835

240

ISGB200-50(I)B

346

96.1

38

78

1450

55.0

4.0

700

241

ISGB200-50(I)C

320

88.9

32

76

1450

45.0

4.0

585

242

ISGB200-80(I)

400

111.1

80

80

1450

132.0

5.0

1565

243

ISGB200-80(I)A

374

103.9

70

79

1450

110.0

5.0

1415

244

ISGB200-80(I)B

346

96.1

60

78

1450

90.0

5.0

1290

245

ISGB200-80(I)C

320

88.9

56

76

1450

75.0

4.0

1050

246

ISGB200-125(I)

400

111.1

125

79

1450

200.0

4.0

1680

247

ISGB200-125(I)A

352

97.8

112

78

1450

200.0

4.0

1680

248

ISGB200-125(I)B

320

88.9

96

77

1450

132.0

4.0

1450

249

ISGB250-12.5

650

152.8

12.5

82

1450

30.0

4.0

550

250

ISGB250-12.5A

506

140.6

10.8

80

1450

22.0

5.0

500

251

ISGB250-20

550

152.8

20

82

1450

45.0

5.0

620

252

ISGB250-20A

506

140.6

17

80

1450

37.0

5.0

550

253

ISGB250-32

550

152.8

32

80

1450

75.0

5.0

915

254

ISGB250-32A

506

140.6

28

78

1450

55.0

5.0

840

255

ISGB250-32B

466

129.3

25

76

1450

45.0

5.0

695

256

ISGB250-50

550

152.8

50

76

1450

110.0

5.0

1557

257

ISGB250-50A

506

140.6

44

74

1450

90.0

5.0

1055

258

ISGB250-50B

466

129.3

39.5

72

1450

75.0

5.0

910

259

ISGB250-50C

428

119

35

69

1450

75.0

5.0

910

260

ISGB250-70

550

152.8

70

76

1450

160.0

5.0

1545

261

ISGB250-70A

506

140.6

60

75

1450

132.0

5.0

1355

262

ISGB250-70B

466

129.3

50

74

1450

90.0

5.0

1055

263

ISGB250-70C

428

119

44

72

1450

75.0

5.0

965

264

ISGB250-80

550

152.8

80

77

1450

200.0

5.0

1750

265

ISGB250-80A

506

140.6

71

75

1450

160.0

5.0

1560

266

ISGB250-80B

466

129.3

63.5

73

1450

132.0

5.0

1420

267

ISGB250-80C

428

119

55

71

1450

110.0

5.0

1350

268

ISGB300-12.5

720

200

12.5

83

1450

37.0

5.0

985

269

ISGB300-12.5A

662

184

11

82

1450

30.0

5.0

925

270

ISGB300-18

720

200

18

81

1450

55.0

5.0

1135

271

ISGB300-18A

607

182.5

15

79

1450

45.0

5.0

1040

272

ISGB300-18B

600

167.0

12.5

77

1450

37.0

5.0

900

273

ISGB300-20

720

200

20

83

1450

55.0

5.0

900

274

ISGB300-20A

662

184

17.5

81

1450

45.0

5.0

785

275

ISGB300-28

720

200

28

81

1450

75.0

5.0

1350

276

ISGB300-28A

666

185

24

80

1450

75.0

5.0

1350

277

ISGB300-28B

623

173.1

21

79

1450

55.0

5.0

1170

278

ISGB300-32

720

200

32

82.5

1450

90.0

5.0

1350

279

ISGB300-32A

662

184

28

80

1450

75.0

5.0

1250

280

ISGB300-32B

609

169.3

23.5

78

1450

55.0

5.0

1080

281

ISGB300-44

720

200

44

84

1450

132.0

5.0

1900

282

ISGB300-44A

666

185

38

80

1450

110.0

5.0

1700

283

ISGB300-44B

614

170.6

32

78

1450

90.0

5.0

1550

284

ISGB300-50

720

200

50

80

1450

132.0

5.0

1725

285

ISGB300-50A

662

184

44

79

1450

110.0

5.5

1520

286

ISGB300-50B

609

16.3

38

77

1450

90.0

5.5

1400

287

ISGB300-50C

561

155.7

33

74

1450

75.0

5.5

1250

288

ISGB300-65

720

200

65

81

1450

200.0

5.5

2150

289

ISGB300-65A

662

184

55

80

1450

160.0

5.5

1730

290

ISGB300-65B

609

169.3

45

79

1450

110.0

5.5

1630

291

ISGB300-65C

561

155.7

38

78

1450

90.0

5.5

1500

292

ISGB300-80

720

200

80

80

1450

250.0

5.5

2280

293

ISGB300-80A

662

184

70.5

79

1450

200.0

5.5

2150

294

ISGB300-80B

609

169.3

62

77

1450

160.0

5.5

1980

295

ISGB300-80C

561

155.7

54.5

75

1450

132.0

5.5

1850

296

ISGB350-12.5

1080

300

12.5

83

970

55.0

5.5

1200

297

ISGB350-12.5A

995

276.4

10

81

970

45.0

5.5

1020

298

ISGB350-20

1080

300

20

82

970

90.0

5.5

1450

299

ISGB350-20A

995

376.4

17

80

970

75.0

5.5

1320

300

ISGB350-20B

931

258.6

15

78

970

55.0

5.5

1150

301

ISGB350-32

1080

300

32

83

1450

132.0

5.5

2150

302

ISGB350-32A

995

276.4

27

81

1450

110.0

5.5

2000

303

ISGB350-32B

931

258.6

24

79

1450

90.0

5.5

1850

304

ISGB350-40

1080

300

40

82

1450

160.0

5.5

1700

305

ISGB350-40A

965

268.1

32

80

1450

132.0

5.5

1500

306

ISGB350-40B

900

250

28.2

78

1450

110.0

5.5

1300

307

ISGB350-50

1080

300

50

83

1450

200.0

5.5

2300

308

ISGB350-50A

995

276.4

44

81

1450

160.0

5.5

2100

309

ISGB350-50B

931

258.6

38

79

1450

132.0

5.5

1950

310

ISGB350-60

1080

300

60

82

1450

230.0

5.5

2500

311

ISGB350-60A

995

376.4

54

80

1450

200

5.5

2250

312

ISGB350-60B

931

258.6

46.9

78

1450

160.0

5.5

2100

313

ISGB350-12.5(I)

1200

333.3

12.5

80

1450

55.0

5.5

1250

314

ISGB350-12.5(I)A

1080

300

10.5

80

1450

45.0

5.5

1150

315

ISGB350-20(I)

1200

333.3

20

80

1450

90.0

5.5

1580

316

ISGB350-20(I)A

1080

300

17

78

1450

75.0

5.5

1350

317

ISGB350-32(I)

1200

333.3

32

78

1450

160.0

5.5

1870

318

ISGB350-32(I)A

1080

300

28

76

970

132.0

5.5

1720

319

ISGB350-32(I)B

985

273

25

75

970

110.0

5.5

1650

320

ISGB350-50(I)

1200

333.3

50

74

970

250.0

5.5

2350

321

ISGB350-50(I)A

1080

300

44

72

970

200.0

5.5

2100

322

ISGB350-50(I)B

985

273

38.5

70

970

160.0

5.5

2000






如果您有需要我们的帮助
请与我们联系。

马上联系
首页 | 产品中心 | 关于帕特 | 新闻中心 | 现场应用 | 联系我们
网站认证

权威网站相关认证

关注帕特二维码,下载产品资料
Copyright © 2019 上海帕特泵业制造有限公司 ALL RIGHTS RESERVED 保留所有权利  技术支持:英捷互联  网站地图 Sitemap
沪公网安备 31010602004701号
